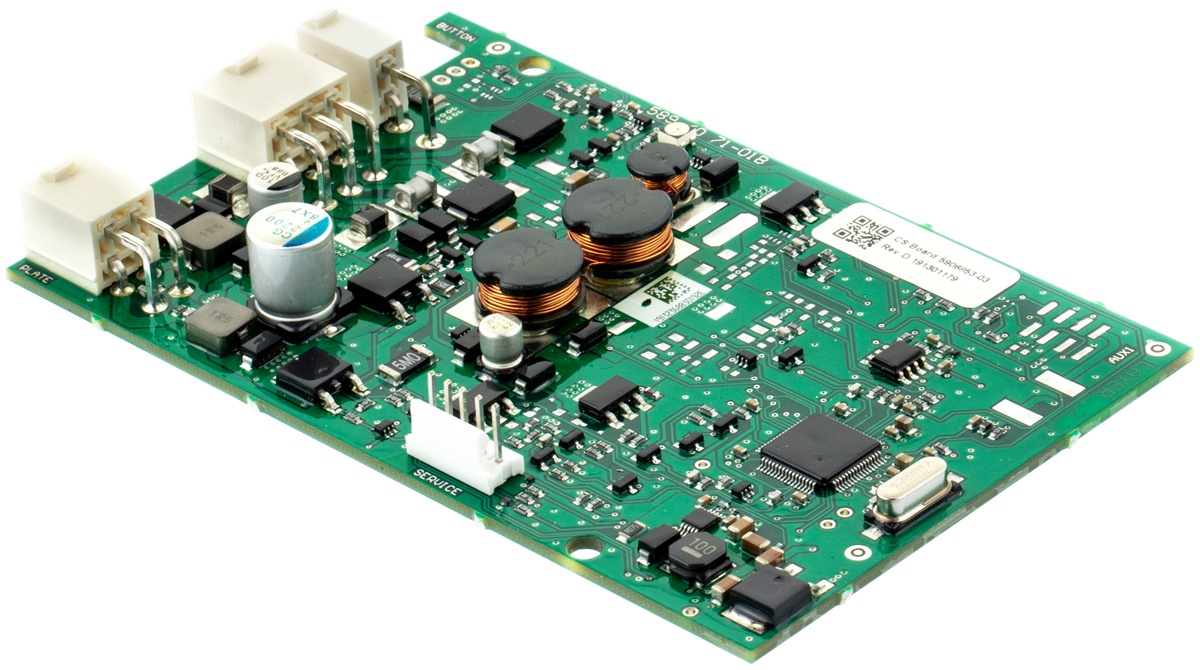

Circuit board charging station 305(2020-), 310, 315, 315X, 405X, 415X
The circuit board is one of the components that can be damaged by events such as lightning. The robot will often display the error message "no loop signal," even though the LED shows a steady green light. In this case, try disconnecting one of the boundary wires; when you do this, the LED should start blinking blue. If it doesn’t, the circuit board is likely faulty.
Don’t forget to pair the robotic lawnmower after replacing the circuit board. You can do this via the menu -> security -> advanced -> new loop signal.
Don’t forget to pair the robotic lawnmower after replacing the circuit board. You can do this via the menu -> security -> advanced -> new loop signal.
€124.90
- Information
-
Charging station circuit board for Automower 305 (2020 or newer), 310, 315, and 315X.
Compatible with:
Husqvarna Automower 305 (from model year 2020, with four wheels)
Husqvarna Automower 310
Husqvarna Automower 310 Mark II
Husqvarna Automower 315
Husqvarna Automower 315X
Husqvarna Automower 315 Mark II
Husqvarna Automower 405X
Husqvarna Automower 415X
Husqvarna Automower LIMITED EDITION
Gardena
Gardena SILENO, SILENO+ (100Li/R100LiC/R130Li/R130LiC/R160Li)
Replaces 590 68 53-01, 589 60 21-01, 592 90 93-01
- Specifications
-
Manufacturer's part number: 592 90 93-02 , 592909302 - Files
