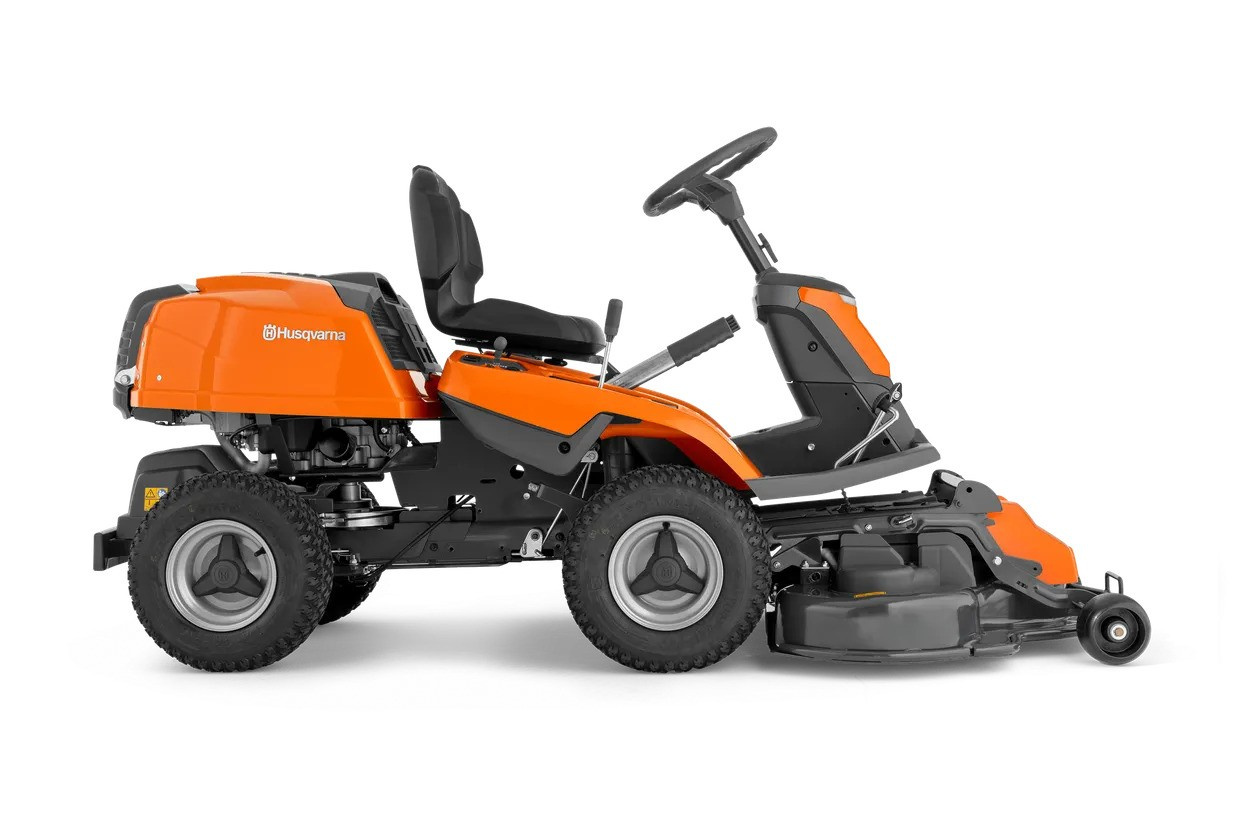

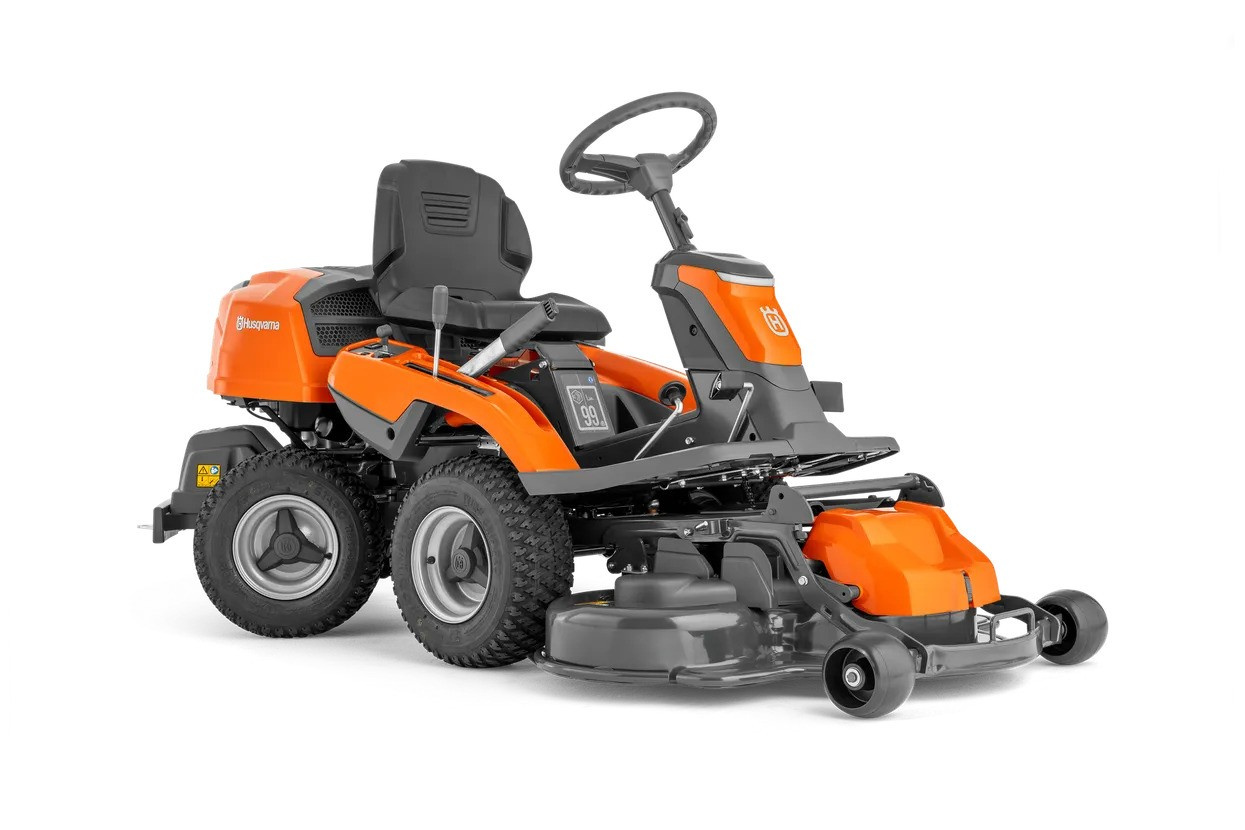

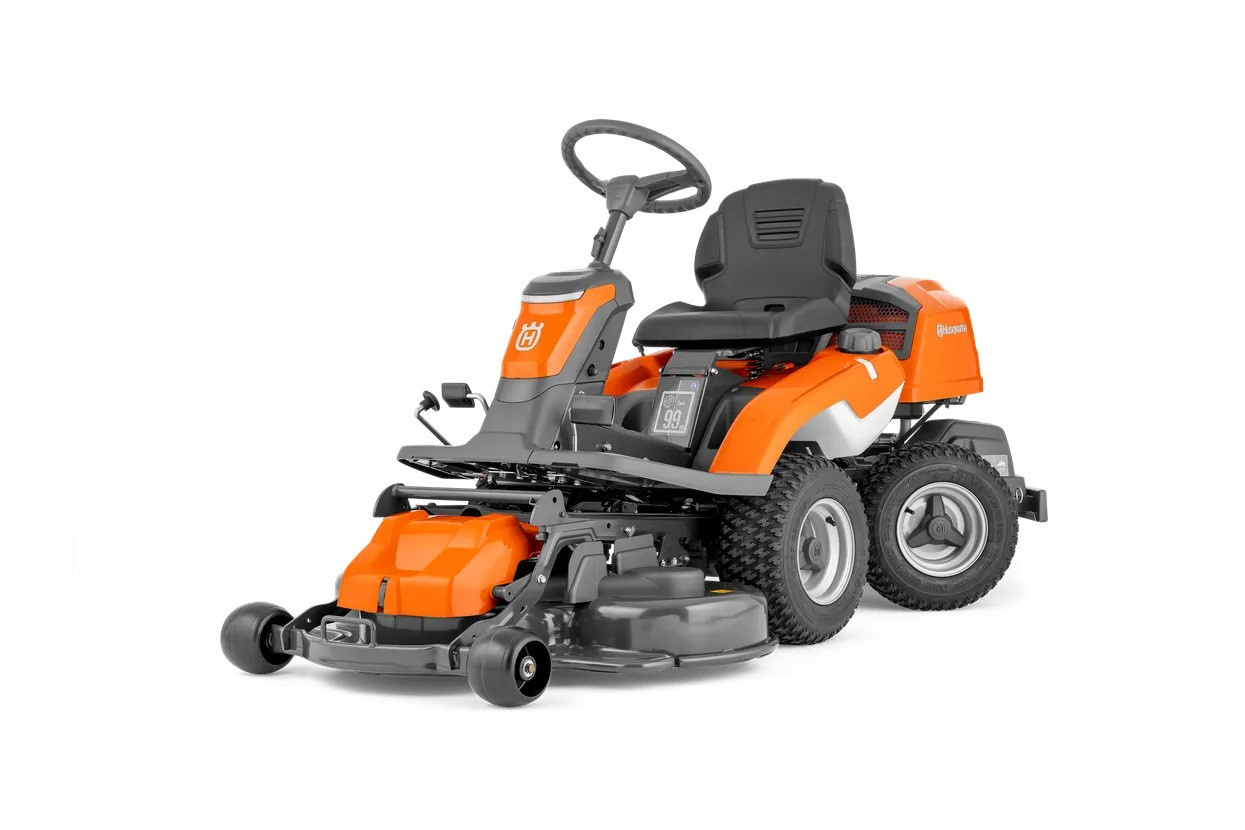

Versatile ride-on mower with power steering and LED headlights
The highly versatile Husqvarna R 214Ts is crafted for larger lawns and demanding garden work all year round. Built on the proven Rider concept, it delivers excellent manoeuvrability and great cutting results. Power steering ensures smooth steering around obstacles and reduces strain on your body, allowing comfortable mowing over longer sessions. A wide range of accessories and attachments make R 214 Ts equally effective for tasks during other seasons, such as snow removal and sweeping walkways. LED headlights ensure visibility and efficiency during darker hours. Maintenance is straightforward thanks to the convenient service position, which makes cleaning and blade changes quick and easy.

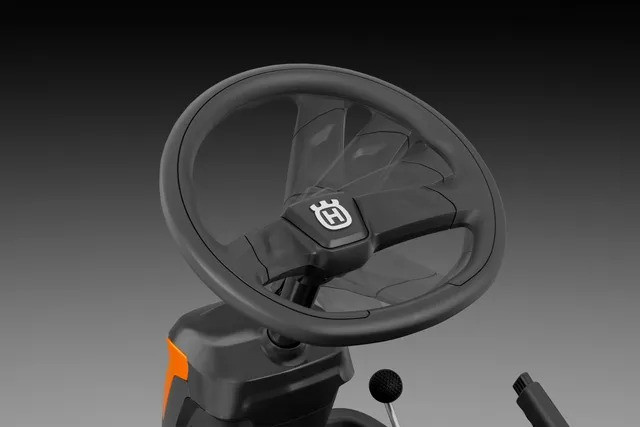

Power steering
Effortless mowing with power steering that reduces strain and improves manoeuvrability in any garden.

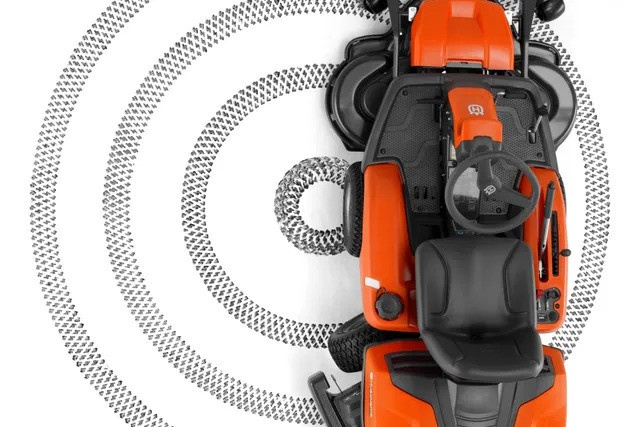

Unique articulated steering
Min. clearance circle by articulated steering

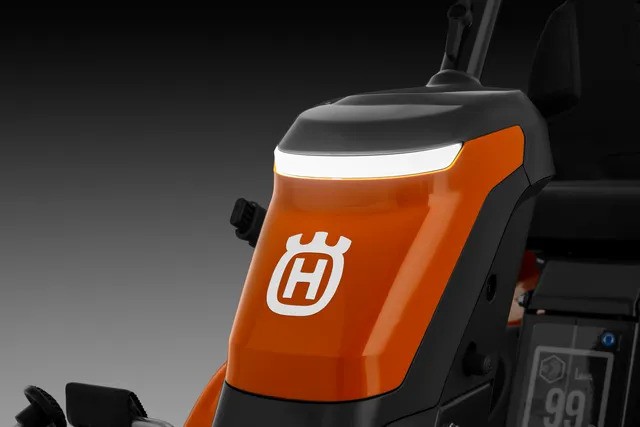

LED Headlight
New LED headlights ensure visibility later in the day and in darker seasons, while adding a modern look.
Turn key start
Easy to get operating and no manual choking needed. Just turn the key and go.

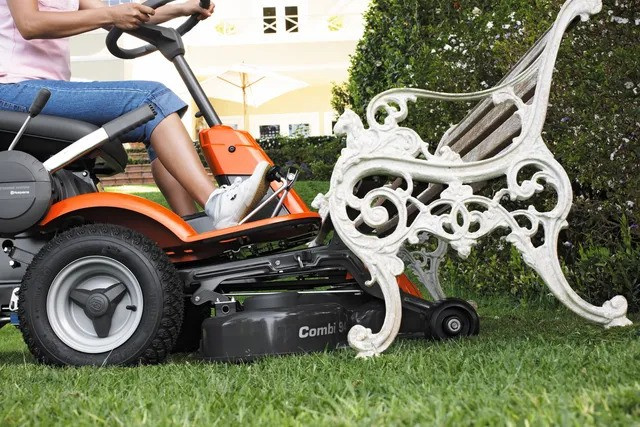

Front-mounted cutting deck
Front-mounted cutting deck for excellent accessibility into corners and under bushes, park benches etc.

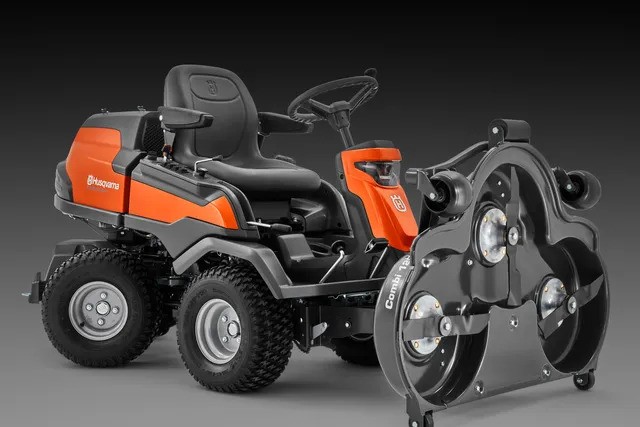

Optional Combi cutting deck
Optional Combi cutting deck (94 or 103 cm) for efficient BioClip® and rear ejection cutting.
Service position
Service position for easy deck maintenance
Comfortable driver's position
With a Rider you get safety, stability and traction on both flat grounds and hillsides.

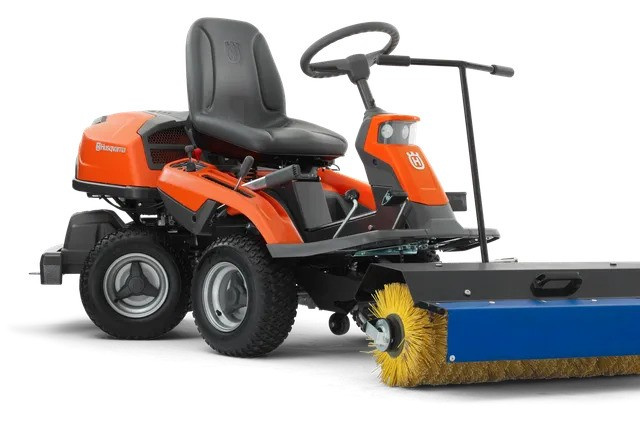

Versatile usage
A wide range of cutting decks and attachments will make your front mower versatile, all year round.

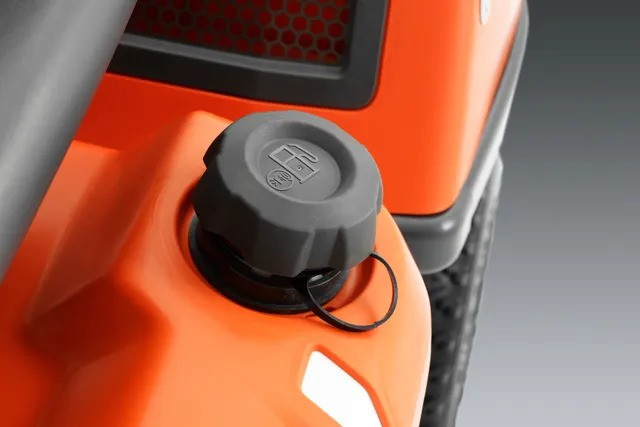

External fuel cap
Thanks to the external fuel cap, you don't have to open the engine hood when refueling.
Pedal-operated hydrostatic transmission
Speed and direction are controlled by pedals, letting you keep both hands on the steering wheel

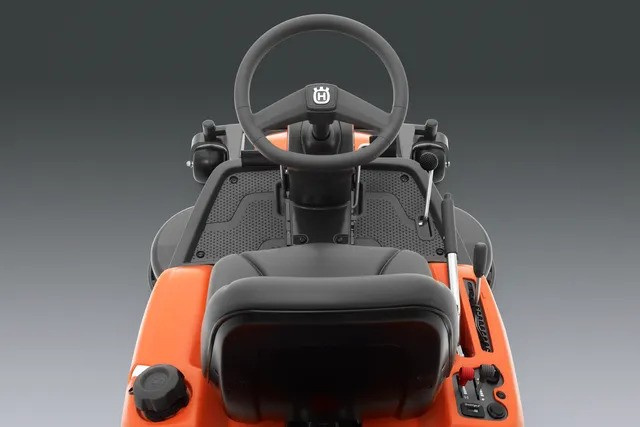

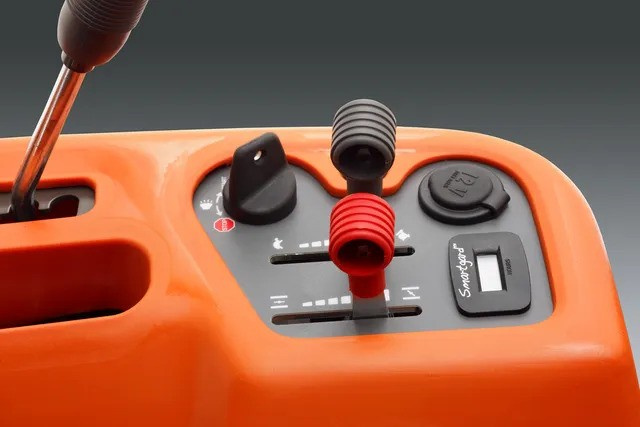

Easy-access controls
Controls are easy accessible and designed for optimum user comfort.
Automatic blade engagement
The blades are engaged automatically when you lower the cutting deck for a quick and smooth start of work.

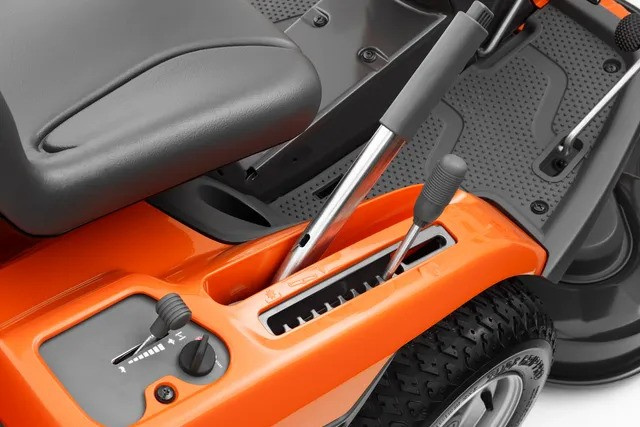

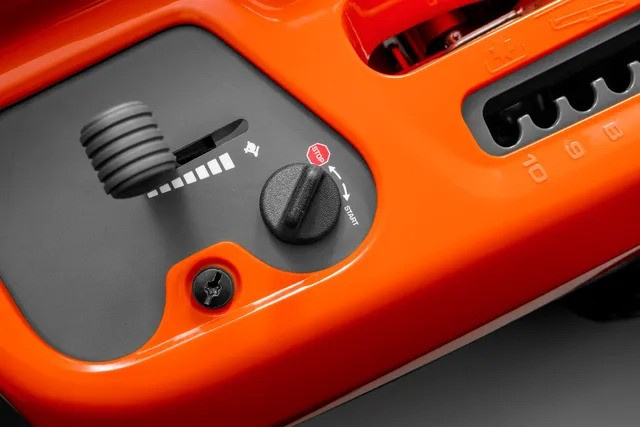

Easy-access cutting height lever
The cutting height lever is easy to reach from the driver’s seat, making it possible to do cutting height changes while mowing.
Combi cutting deck with BioClip® (mulching)
BioClip® (mulching) cuts the grass into fine pieces that quickly decompose and become a natural fertiliser
Four large wheels
Equally sized wheels for a comfortable ride
Engine behind driver
The rear-mounted engine provides a better overview of the mowing, and less emissions in the driver’s area.

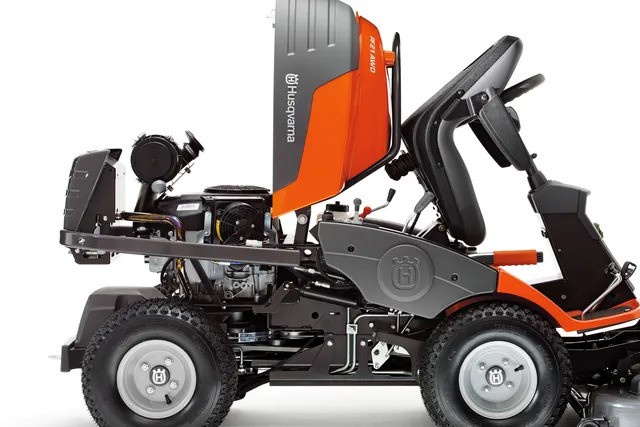

Easy access
The tilting hood and easy-access servicing points make maintenance and servicing easy.

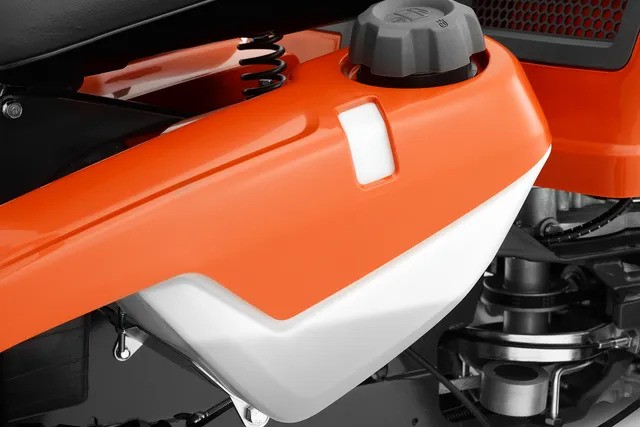

Transparent fuel tank
Large, transparent fuel tank makes it easy to check the fuel level and plan your work accordingly.

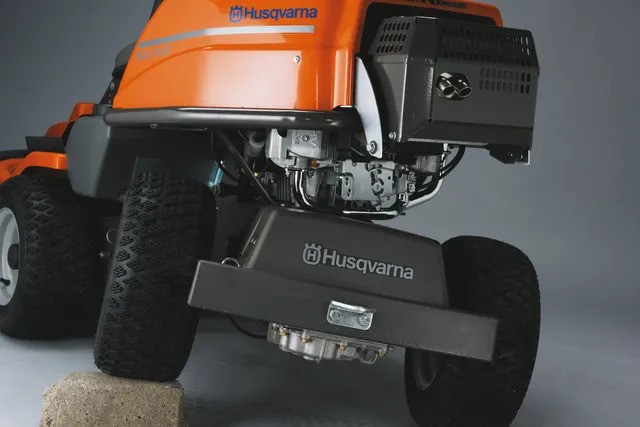

Pivoting rear axle
The rear axle is pivoting to get maximum traction on the drive wheels also on uneven surfaces.
Storage compartment
The open left storage makes it easy to access your items while mowing.
Bottle holder
Convenient bottle holder for refreshments.
Engine | |
Power/fuel type | Petrol |
Net power at preset rpm Energy1 | 12 kW |
Net power at preset rpm | 2,900 rpm |
Engine brand | Husqvarna |
Motor/engine manufacturer | Husqvarna |
Engine name | HV 586AE |
Cylinder displacement | 586 cm³ |
Cylinders | 2 |
Engine cooling | Air |
Engine lubrication type | Pressure with Oilfilter |
Oil filter | Yes |
R 214Ts RIDER 970 79 08‑01 | |
|---|---|
Emission | |
Exhaust emissions (CO₂ EU V)2 | 778 g/kWh |
R 214Ts RIDER 970 79 08‑01 | |
|---|---|
Battery | |
Battery capacity | 24 Ah |
Battery Chemistry | Lead-Acid |
Battery Weight | 7.2 kg |
Battery brand | Global |
R 214Ts RIDER 970 79 08‑01 | |
|---|---|
Cutting deck | |
Uncut circle | 30 cm |
Cutting width, min | 94 cm |
Cutting width, max | 103 cm |
Cutting height min | 25 mm |
Cutting height max | 75 mm |
Blade engagement | Automatic |
R 214Ts RIDER 970 79 08‑01 | |
|---|---|
Dimensions | |
Tyre dimensions, front | 170/60-8 |
Tyre dimensions, rear | 170/60-8 |
Wheelbase | 88.7 cm |
Base machine, length | 194 cm |
Base machine, width | 88 cm |
Base machine, height | 113 cm |
Gross weight towed3 | 110 kg |
Weight (excl. cutting equipment) | 210 kg |
R 214Ts RIDER 970 79 08‑01 | |
|---|---|
Drive system | |
PTO (Power Take Off) | Belt Drive |
Transmission type | Hydrostatic |
Drive method | Dual pedal-operation |
Speed forward max | 9 km/h |
Speed reverse max | 6 km/h |
R 214Ts RIDER 970 79 08‑01 | |
|---|---|
Equipment | |
Seat suspension | Yes |
Seat type | Comfort |
Hour meter type | Digital |
Seat material | PU |
Seat back height | Medium |
Foldable seat | Yes |
Steering wheel type | Ergonomic |
Parking brake, type | Disc |
R 214Ts RIDER 970 79 08‑01 | |
|---|---|
Vibration | |
Vibration level steering wheel | 1.9 m/s² |
Vibration level seat | 0.29 m/s² |
R 214Ts RIDER 970 79 08‑01 | |
|---|---|
Sound and noise | |
Sound pressure level at operators ear (LpA) | 85.9 dB(A) |
Sound power level, guaranteed (LWA) | 99 dB(A) |
Sound power level, measured | 98.1 dB(A) |
